The advanced mathematical analysis method known as CFD (Computational Fluid Dynamics) is used to forecast fluid behavior in the flow field of interest, heat and mass transfer (such as precipitation and dissolution), phase change (such as melting, freezing, and boiling), chemical reaction (such as combustion), mechanical movement (such as motion of pistons, fans, and impeller), and even stresses or deformation of related solid structures via fluid meshing.
Simplified: The computer solutions of a number of fundamental equations to forecast practically any sort of fluid motion are known as computational fluid dynamics (CFD) in layman’s terms.
A CFD analysis opens with dividing (or discretizing) the geometry to be modeled into (generally speaking) a substantial number of small computational cells.
The process of discretization involves solving a series of algebraic equations for the variables at several discrete positions in space and time to approximate the differential equations. The term “grid” or “mesh” or “fluid meshing” is typically used to describe said discrete positions.
Equations for the conservation of mass, heat, momentum, and the dissipation of motion into turbulence are being repeatedly solved in this investigation. If necessary, the solution technique can include the extra effects listed above. To help with the visualization of what is actually occurring in the flow domain, the results are frequently displayed graphically (as seen in the accompanying image).
The CFD project’s most labor-intensive step is frequently the creation of the computing grid.
The grid’s quality is crucial and can have a significant impact on the solution, often even influencing whether a converged solution can be obtained at all.
The most crucial need for computational fluid meshing is that it must define enough points to capture all the interesting activity taking place in the computational domain without growing excessively large and necessitating unacceptable computation times.
Some of the crucial details regarding the flow regime may be lost entirely if there are too few points given. Additionally, it should be emphasized that to make the simulation process simpler, CFD models make several assumptions.
Empiricism and correlations of overall parameters for non-ideal or non-equilibrium situations play a significant role in the design, scaling up, and operation of equipment in many sectors. Design correlations typically do not account for local influences. Empirically predicting nonidealities brought about by scaling up bench-top or pilot-scale equipment is typically challenging, if not impossible. Contrarily, CFD enables a thorough examination of the fluid mechanics, fluid meshing, and local impacts in a variety of processing equipment types. As a result of CFD analysis, we can easily increase performance, dependability, scale-up confidence, product uniformity, and even productivity.
In contrast to traditional laboratory studies, CFD is an analysis tool that may provide enhanced visualization and rich information regarding flow-related phenomena in many various types of processing equipment. Shorter design cycles and a shorter period between the conceptual stage and field execution will result in better and faster development. This will undoubtedly be helpful in analyzing retrofit designs, diagnosing, and troubleshooting existing equipment, and reducing downtime. Above all, process improvement will result in significant time and money savings.
Over the years, SimuTech Group CFD Consultants has accumulated extensive experience in the improvement of designs and operational efficacy in equipment related to oil and gas, aerospace, HVAC, automotive, and several other industries. While alternate businesses have their own CFD capabilities, SimuTech Group occasionally offers CFD simulations for them. We can help clients make the most of their valuable time by helping them analyze the CFD results, optimize fluid meshing, and assist with mentorships to create improvements.
CFD software analyses and accompanying studies simulate fluid flow in relation to its physical characteristics, including velocity, pressure, temperature, density, and viscosity. These features must be taken into account simultaneously in order to digitally develop an accurate solution for a physical phenomenon connected to fluid flow.
In contrast to traditional laboratory studies, CFD is an analysis tool that may provide enhanced visualization and rich information regarding flow-related phenomena in many various types of processing equipment. Shorter design cycles and a shorter period between the conceptual stage and field execution will result in better and faster development. This will undoubtedly be helpful in analyzing retrofit designs, diagnosing, and troubleshooting existing equipment, and reducing downtime. Above all, process improvement will result in significant time and money savings.
In a CFD software tool, the fluid flow is analyzed using a numerical method and a mathematical model of the physical scenario. For instance, the mathematical representation of the physical case is the Navier-Stokes (N-S) equations.
This explains how the physical characteristics that affect heat transmission and fluid flow change. The type of problem—heat transmission, mass transfer, phase change, chemical reaction, etc.—variates the mathematical model used to solve it. Additionally, the process’s overall structure has a significant impact on how reliable a CFD study is.
To build a solid case for fixing the problem, it is crucial to validate the mathematical model. In addition, choosing the appropriate numerical techniques is essential for producing a trustworthy solution.
A sustainable product development process must include the CFD analysis since it allows for a significant reduction in the number of physical prototypes.
Humanity has always been curious to learn more about phenomena based on fluid flow.

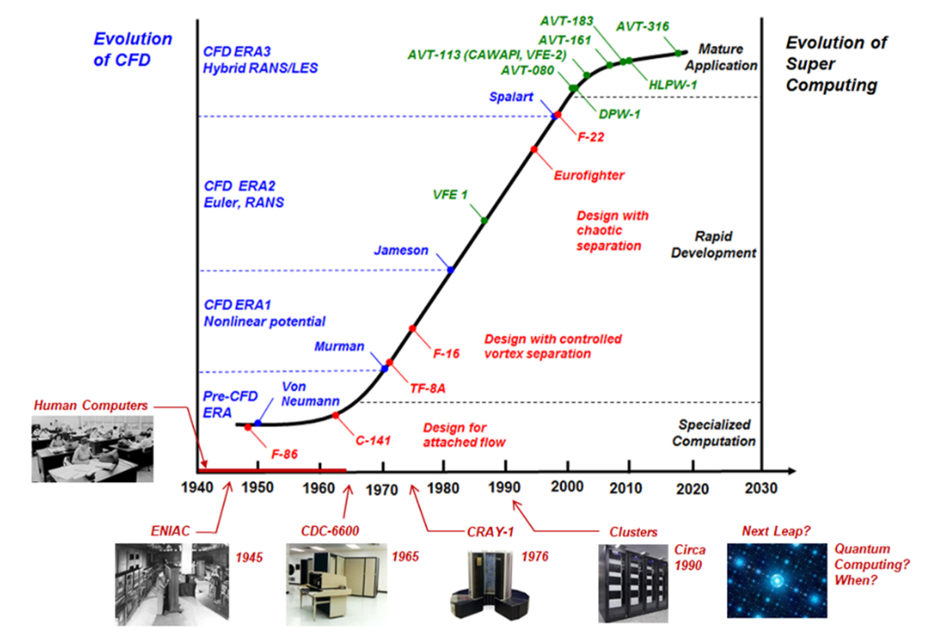

How old is CFD then?
Well, one major drawback of experimental investigations in the field of CFD is that they take a lot of time and money to complete if ‘absolute’ accuracy is required…
Rizzi and J.M. Luckring, Aerospace Science and Technology 117 (2021)
…To speed up analysis, scientists and engineers needed to develop a technique that would let them combine a mathematical model and a numerical method with a computer.
Pre-20th Century: The fundamental mathematics for modeling fluid dynamics were devised in the 19th century, spawning from the Navier-Stokes Equations. These equations describe how the velocity, pressure, temperature, and density of a moving fluid are related. In fact, the final equation was derived from two independent equations via G.G. Stokes, in England, and M. Navier, in France, in the early 1800’s.
Ansys’ most powerful computational fluid dynamics tool, Fluent, includes well-validated physical modeling capabilities to deliver fast, accurate results across the widest range of CFD and multiphysics applications.
Ansys CFX is a high-performance computational fluid dynamics tool that delivers reliable and accurate solutions quickly for a wide range of applications, including leading capabilities for rotating machinery.
Ansys EnSight is the market leader for data visualization. Its post-processing tool includes models with more than hundreds of millions of cells, providing engineers with insights unavailable elsewhere.
Ansys Polyflow provides advanced fluid dynamics technology for companies in the polymer, glass, metals, and cement processing industries.
Ansys Chemkin-Pro is the gold standard for modeling and simulating complex gas phase and surface chemistry reactions for fast, accurate development of combustion systems.
Ansys TurboGrid complements rotating machinery simulation with a specialized, easy-to-use tool for the rapid 3D design of rotating machinery components.
Ansys Forte accurately simulates IC engine combustion performance with nearly any fuel, helping engineers rapidly design cleaner burning, high-efficiency, fuel-flexible engines.
Ansys Vista TF complements rotating machinery simulation by enabling engineers to quickly develop blade geometries that achieve desired performance objectives.
Ansys BladeModeler complements rotating machinery simulation with a specialized, easy-to-use tool for the rapid 3D design of rotating machinery components and fluid meshing simulation.
Mosaic Mesh, a Hexahedral Dominant Mesh Software accelerates the meshing process with a reduced face count, higher quality cells and efficient parallel scalability.
FENSAP-ICE is the premier in-flight icing simulation system. Its innovative, graphical environment provides intuitive file management and makes it easy to interact between simulation modules.
Fluent meshing provides automation to highly crafted meshing. Methods available cover the meshing spectrum of high-order linear elements to tetrahedral and polyhedral analysis.
