Ansys Additive Suite | All-Encompassing Additive Manufacturing (AM) Solution

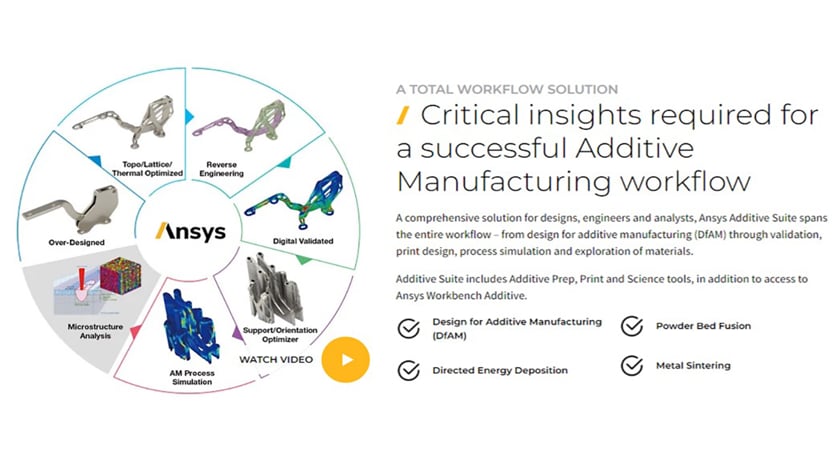

With the Additive Suite, individuals have access to all tools, including Additive Prep, Additive Print, Additive Science, and Workbench Additive.

Additive-3D-Printing-electron-beam-additive-manufacturing-quality-simulation-SimuTech-Group



Additive-Manufacturing-3D-Visualization-Design-Optimization
Intuitive Build Processor & Slice Viewer

Contact for Ansys Additive Manufacturing

AM Build Preparation | Maximize Efficiency

Control Your Variables and Minimize Build Failures
Three unique software tools from Ansys enable engineers to control some of the most challenging variables within metal AM: build orientation, distortion and deposition paths. In this video we discuss the first tool in the set, preparing you for success out-of-the-gate.

Product Specs:

        • Design Validation
        • Material Analysis
        • Process Simulation
        • Distortion Compensation
        • Build Failure Prediction
        • Metal PBF Process Simulation
        • Structural and Thermal Analysis
        • Topology and Lattice Optimization
        • Comprehensive Inlet and Outlet Condition
        • Melt Pool, Porosity and Microstructure Predictions





Line-Break-Dark-Blue-Simulation-Engineering-Experts-SimuTech-Group


Ansys Additive Suite | Core Benefits & Capabilities





Topology-Optimization-SimuTech-Group-Simulation-Experts



Conventional Manufacturing Techniques Impose Stringent Design Thresholds

Manufacturing Challenge:  For manufacturability and assembly constraints, the outdated simulation methods, in which models are investigated one at a time by physically defining their geometry, or dozens at a time by parametrically fluctuating their proportions, are simply not up to the task of exploring a potentially unlimited design space.

Manufacturing Instance:  Injection Molding

  • For example, manufacturability procedures for molding normally incorporate the need for draft angles to enable ejection of the part, identical wall thickness to minimize warpage, radiused corners to develop plastic flow during molding, and other manual exercises that slow the design process and increase operating expenses.

Manufacturing Solution:  Three-dimensional printing eliminates these and other constraints for plastic and metal parts, making it economically viable to develop complex structures that deliver higher performance-to-weight and performance-to-cost proportions than can be reached with standard manufacturing practices.

  • The design independence offered by Ansys additive manufacturing enables an infinite array of product models for prospective consideration.
  • Take advantage of this freedom and nullify traditional wisdom.  Be bold and design products based on completely new paradigms reshaping the industry.
Crack-Propagation-Analysis-in-Additive-Manufactured-Materials-and-Structures-Complexity-Fractures-SimuTech-Group



Conventional Manufacturing Overlooks the Inherent Process-Structure-Property Link

Manufacturing Challenge: One of the core challenges of implementing additive manufacturing (AM) practices for the intent of production is the lack of understanding of its fundamental process-structure-property connection. Parts manufactured using AM machineries may be too unpredictable and erratic to meet the strict requirements for many business applications.

Manufacturing Instance:  Mission-critical Applications

The lack of geometric accuracy of AM parts is a major barrier preventing its use in mission-critical applications. Quantifying the geometric deviations of additively manufactured parts from a large data set of laser-scanned coordinates using an unsupervised machine learning approach is out-of-range for traditional software capabilities.

Manufacturing Solution:  Fortunately, a core objective in designing the Ansys Additive Suite software has been to characterize the underlying thermo-physical dynamic forces of the AM process, captured by melt pool signals, and calculating porosity during the build.

  • In this, we have succeeded. Through a novel porosity prediction methodology embedded in the software, based on the temperature distribution of the top surface of the melt pool as the AM part is being built. The key word being “as” here.  It’s the real-time calculations, be it a trial or live run, that separates Additive Suite from the traditional solutions.
  • In addition, advance data analytic and machine learning methods are then employed to further analyze the 2D melt pool images streams to isolate the patterns of melt pool images and its association to porosity.
A standalone application for design-stage investigation of materials and optimal machine parameters. Capabilities include:
  • Material analysis tool for Additive Manufactured parts
  • Porosity prediction
  • Microstructure prediction
  • Grain morphology
  • Material tuning wizards
With Topology Optimization, users have the tools needed to design durable, lightweight components for any application. Easily define objectives and apply controls to ensure requirements are met, minimum material thicknesses are set and exclusion areas are defined.
Precise and timely build failures prediction techniques can cut the expenses of CI build cost by early detection of a designs potential failures with an integrated manufacturing workflow.
Utilize full nonlinear and linear analysis capabilities to validate designs under a vast range of scenarios. Both thermal and structural loading conditions can be applied to understand performance and durability.
Editing STL files can be conducted in two different types of modeling software: On one hand, there is CAD software (Computer-Aided Design). It is tailored for construction, provides exact measurements and solid modeling analysis. On the other hand, there are mesh editing tools such as Ansys Meshing and other such MeshLab software. They are designed for modeling, animation, and objects expressed by a 2D surface. Both options are supported in our Additive Suite.
Predict part shape, distortion and stresses before printing with this native feature. Specifically designed for users familiar with this environment, print simulation facilitates the set up and solving of print simulations. Flexibility allows for adjusting workflow settings as needed.
  • Supervised learning provisions automatically applied to dichotomize the melt pools.
  • Real-time monitoring toolkit embedment to detect anomalies in the microstructure.
  • Morphological models and base metrics of analogous melt pools are compared.

Building components as a network of unit cells can significantly improve material utilization and performance.  Many of our business partners have shared similar challenges of additively manufacturing parts that were not designed to be fabricated layer by layer.  Our software is an all-encompassing suite designed to account for, and solve these nuances through multifaceted integration.
