Ansys étudiant en électronique de bureau offre un accès gratuit aux simulateurs de référence de l’industrie pour les projets avec des conceptions d’antennes, RF, micro-ondes, PCB, IC et IC, ainsi que des dispositifs électromécaniques, y compris des moteurs électriques et des générateurs.
Remote Computing Infrastructure
Students will have access to Ansys HFSS, Ansys Maxwell, Ansys Q3D, and Ansys Icepak, allowing design work on a wide range of electrical and electromechanical systems. Ansys HFSS is a multipurpose, full-wave 3D electromagnetic (EM) simulation software.
- Ansys Maxwell is a 3D electromagnetic simulation solver for electric machines and electromechanical devices.
- Ansys Q3D Extractor calculates the parasitic parameters of resistance, inductance, capacitance and conductance (RLCG) for electronics designs.
- Ansys Icepak is a computational fluid dynamics (CFD) solver for electronics thermal management.
Ansys HPC (High-Performance Computing):
Supports up to four cores for HPC solutions.
Simulate Magnetic Fields of a Helmholtz Coil
[vc_btn title= »Download Ansys Electronics Desktop » style= »3d » color= »mulled-wine » size= »lg » align= »center » i_align= »right » i_icon_fontawesome= »fas fa-download » button_block= »true » add_icon= »true » link= »url:https%3A%2F%2Fansys13.ansys.com%2Frelease2021R2%2FELECTRONICS_STUDENT_2021R2_WINX64.zip%3F_auth_%3D1644074624_6a5646289e28964d7c758aedcba0dd8c|target:_blank » css= ».vc_custom_1643996216212{border-radius: 2px !important;} »]
Before Installing:
-
- Ensure that your computer meets the technical requirements necessary to run the software.
- Ensure that you have administrative privileges for the computer on which you are installing this product.
- Please visit the Ansys Learning Forum for additional assistance.
Terms of Use: Free student downloads are intended for educational use only and may only be used for self-learning, student instruction, student projects, and student demonstrations.

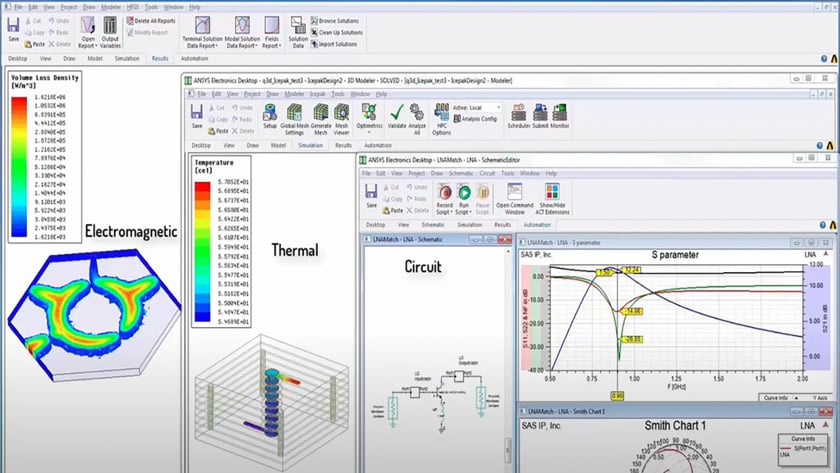

Electronics Desktop | Thermal, EM, SI, PCB, and E-Mechanical Simulation Solutions
How to Perform the Ansys Electronics Desktop Student installation
- Save all data and close all Windows applications before continuing.
- After downloading the installation zip file, uncompress the file to a new temporary directory.
- In the temporary directory, locate and right click the setup.exe file and select Run as administrator. Click Next on the installation window. The license agreement appears.
- Read the agreement form, and if you agree to the terms and conditions, select Yes.
- The directory where you want to install Ansys products is shown in the Install Directory field.
You can install the products into any directory for which you have write permissions. The default is C:\Program Files\AnsysEM. Click the Next to continue. Click Next on the review settings window showing directory and disc space information. - The installation progress screen displays a status bar toward the bottom of the installation window. You will not be able to interrupt the installation process.
The installation program will check your system for the necessary prerequisites (described above). The prerequisites will be installed automatically if not already available.
Supported Platforms and Operating Systems:
- Microsoft Windows 10, 64-bit (Professional, Enterprise and Education), supported builds: LTSB and CBB (CB not supported).
Minimum Hardware Requirements:
- CPU: Pentium® 4 2.0 GHZ or Athlon® 2000+ or faster, 64-bit (x64) processor
- 8 GB RAM
- 17 GB hard drive space
- Graphics card and driver: Professional workstation class 3-D
- OpenGL-capable
Download Times and Supported Browsers:
These are large files. Your internet connection speed and connection overhead will determine how long the download will take.
|
Download Speed (Mbps) |
Average Download Time for Ansys Electronics Desktop Student Product |
Supported Internet Browsers |
|
10 Mbps (10Base-T) |
80 mins |
|
|
25 Mbps (ATM25) |
32 mins |
|
|
50 Mbps (OC1) |
15 mins |
Ansys HPC (High-Performance Computing):
Supports up to four cores for HPC solutions.
- Mesh element count limit:
- HFSS, Maxwell, Q3D Extractor: 3D volume: 64,000 elements, 3D surface: 8,000 elements, 2D: 2,000 triangles
- Icepak: 512K elements
- HFSS: SBR+, hybrid and mesh assembly solves not supported
- No geometry export
- Geometry Import for DXF and STEP formats only
- Integration with Ansys Workbench not supported
- Beta features not supported
- Local solve only (remote configuration not supported)
- Academic terms of use
Renewable, twelve-month lease.
-
Ansys HFSS
-
Ansys Maxwell
-
Ansys Q3D Extractor
-
Ansys Icepak
Physics:
- HF and LF Electromagnetics
- Electromechanical analysis
- Electrothermal analysis
- Integrated 3D modeling environment
- Integrated optimetrics
Features and Capabilities:
Ansys HFSS:
- High-frequency full-wave EM simulation
- Automatic adaptive meshing
- SYZ-parameter extraction
- Local, near- and far-field data
Ansys Maxwell:
- Low-frequency EM simulation
- Automatic adaptive meshing
- Multidomain system modeling
- Electric machine simulation
Ansys Q3D Extractor:
- 3D and 2D quasi-static electromagnetics
- RLC parameter extraction
- Power/signal integrity analysis
- Transmission line RLGC modeling
Ansys Icepak:
- Electrothermal coupling and cooler modeling
- DC Joule heating and multifluid analysis
- ROM flow and thermal analysis
- Unstructured, body-fitted meshing
Geometry Import:
- STEP, DXF
