Contact UsAnsys FEA 303: Ansys Advanced FEA Meshing
Course Overview:

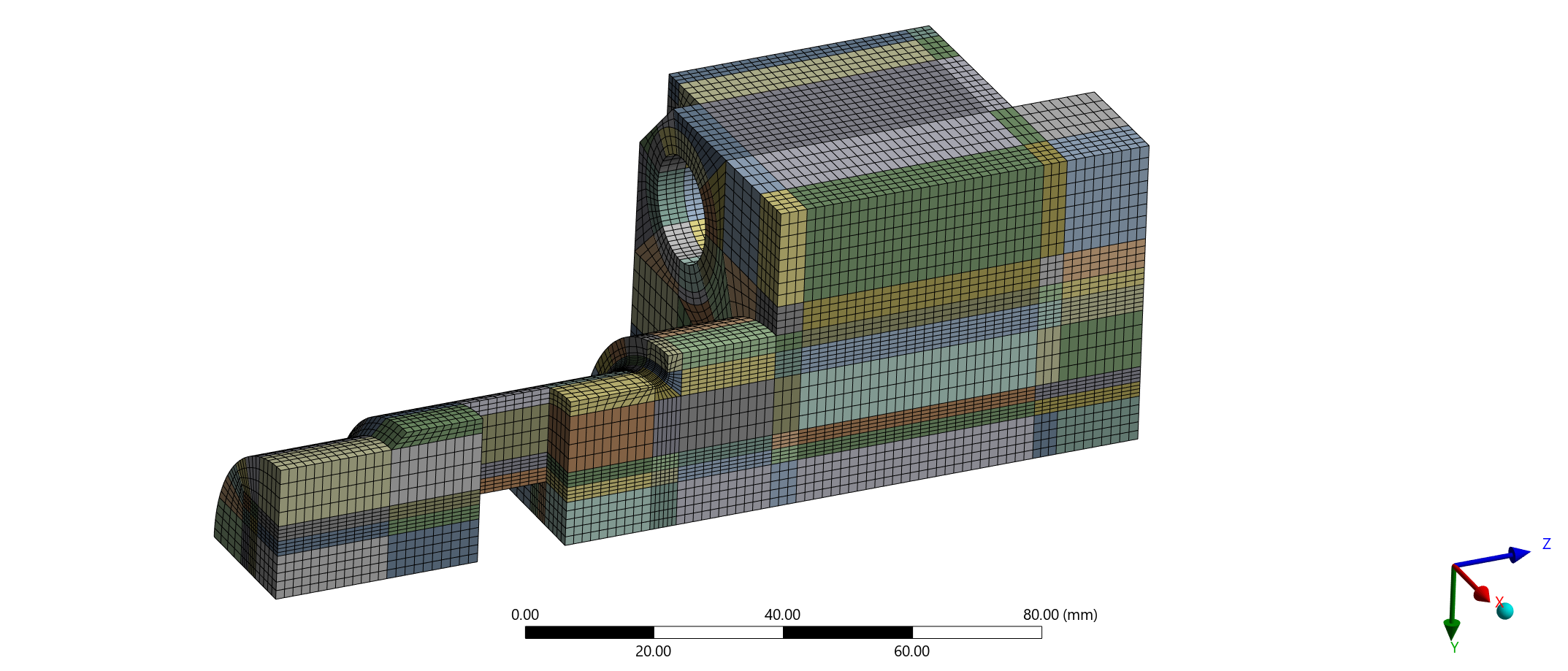

This 4–5 hour masterclass provides a hands-on approach to advanced meshing techniques focused on maximizing the use of high-quality hexahedral meshes for engineering simulations. The course introduces practical workflows and tools for efficiently preparing complex geometries, generating structured meshes, modifying existing meshes, and assembling mesh regions into complete simulation models.
Participants will learn advanced meshing strategies including Slice and Dice, Multizone and Thin Wall meshing, Mesh Pull, Mesh Workflows, and Mesh Assembly techniques. The focus is on achieving greater control over mesh topology and element distribution, enabling the creation of optimized hexahedral-dominant meshes that improve simulation accuracy, convergence, and computational efficiency.
Hexahedral meshes provide significant advantages for both structural and CFD applications. In structural analyses, they can improve stress prediction, reduce numerical errors, and provide better performance in models involving bending, nonlinear behavior, and contact interactions. In CFD simulations, high-quality hexahedral meshes enhance flow resolution, improve numerical stability, and reduce the computational cost required to achieve accurate results, particularly for boundary layers, internal flows, and complex geometries.
Through practical demonstrations and real-world examples, this masterclass will provide participants with the skills required to develop efficient, repeatable meshing workflows and produce simulation-ready meshes optimized for advanced engineering analyses.
Who should take this course:
Any engineer interested in hexa meshing using Meshing tools.
Core proficiencies:
- Advanced Hexahedral Meshing Strategies
- Geometry Decomposition for Mesh Control
- Structured Mesh Generation for Complex Components
- Mesh Editing
- Multi-Region Mesh Assembly
- Hexahedral Mesh Application in FEA and CFD
Contact for FEA 303 Training
Course Agenda | FEA 303
Module 1 – Slice and Dice
Introduction to geometry decomposition strategies for meshing. Learn how to split complex CAD models into manageable regions to achieve better element distribution, mesh quality, and simulation accuracy.
Module 2 – Multizone and Thin Wall Meshing
Explore advanced meshing approaches for generating structured and high-quality meshes. Learn how to apply Multizone techniques and efficiently mesh thin-walled components while maintaining appropriate element characteristics.
Module 3 – Mesh Pull
Learn how to interactively modify and adjust existing meshes. This module covers mesh editing techniques to extend, refine, or reshape mesh regions while maintaining compatibility with simulation requirements.
Module 4 – Mesh Workflow
Understand how to create efficient and repeatable meshing processes. Learn how to organize meshing operations, automate common tasks, and improve consistency across multiple simulation projects.
Module 5 – Assembling Meshes
Learn techniques for combining independently created mesh regions into a single simulation model. This module covers mesh compatibility, connectivity considerations, and best practices for assembling complex models.
